2D15P 3-in-1 Digital Oscilloscope Multimeter Signal Generator 2Channel 100MHz Bandwidth 20000 Counts 500MSa/s SG 10MHz

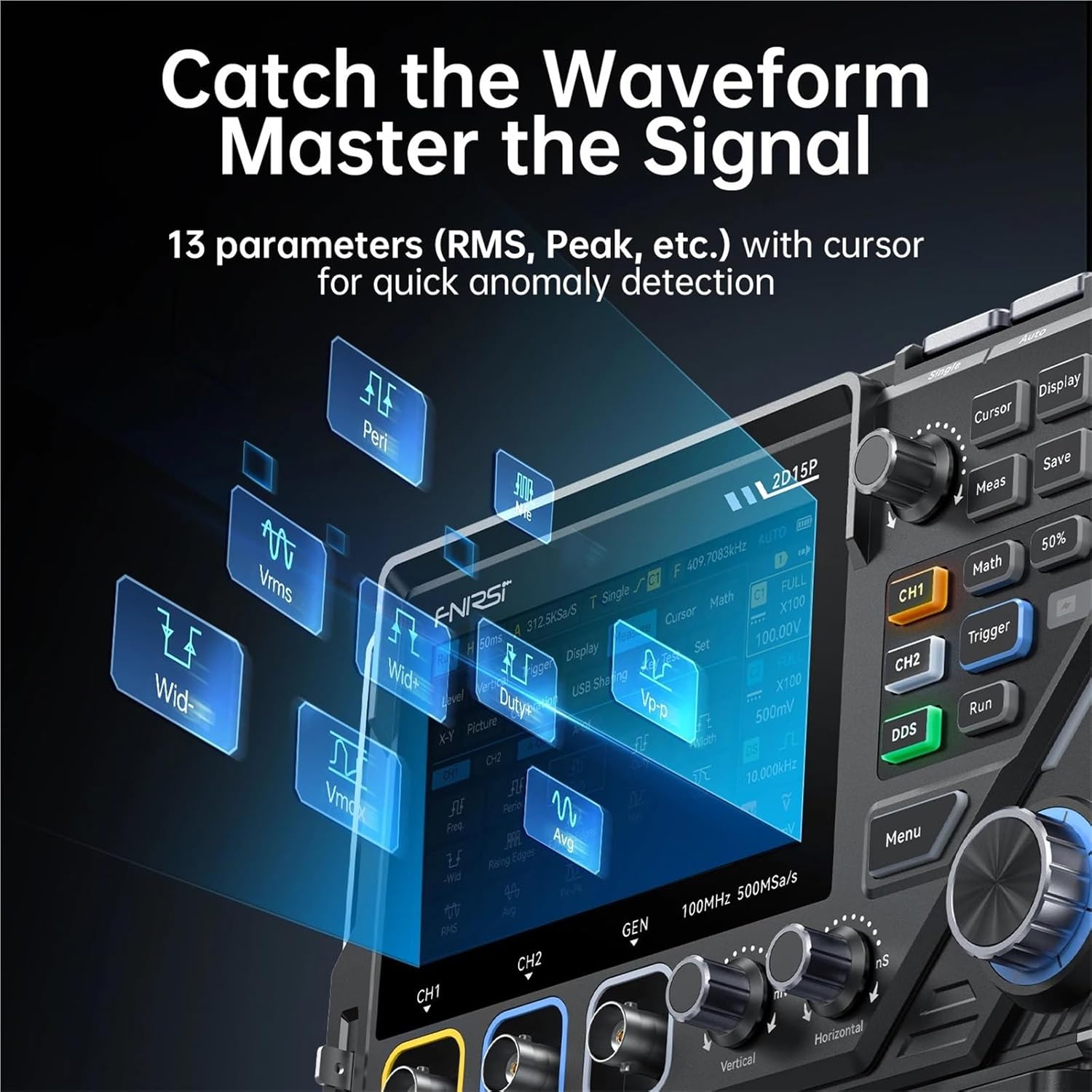

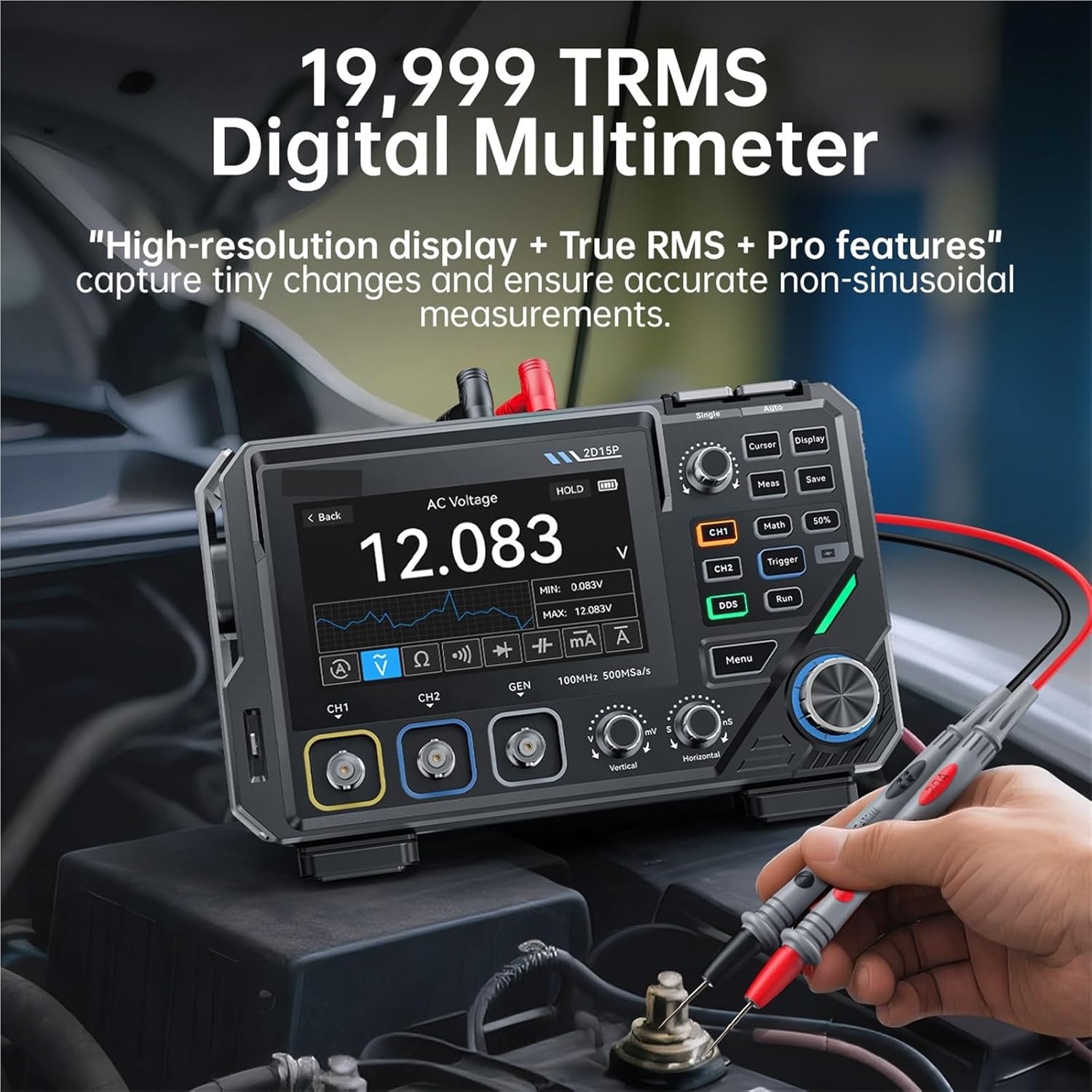

Digital Signal ProcessorsThis product adopts a combination of physical buttons and a 4.3-inch capacitive touchscreen to enhance user interaction and usability. It features a sampling rate of 500 MSa/s and an analog bandwidth of 100 MHz (100 MHz for single-channel operation; 50 MHz per channel when both channels are active). It supports memory depths of 10K, 100K, and 1M. With 128-level grayscale display and support for persistence and color temperature visualization, the oscilloscope provides a clearer view of waveform details.The waveform capture rate reaches up to approximately 1,200 frames per second, allowing effective capture of abnormal signals. The unit includes 12 types of math operations (such as FFT, addition, subtraction, multiplication, and division) for real-time time-domain and frequency-do main analysis. It also offers 18 automatic measurements to assist users in analyzing various signal parameters efficiently. Additionally, the device integrates a 10 MHz waveform generator, capable of outputting 11 common waveforms with adjustable amplitude and duty cycle. The built-in 4.5-digit (20,000 counts) True RMS digital multimeter supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, and continuity testing.Key Features:1.Dual-Channel 100MHz High-Performance ScopeEquipped with up to 500MSa/s sampling rate and 100MHz analog bandwidth (50MHz per channel when both channels are active), with 10K/100K/1M memory depth, easily capturing complex and transient signals.2.4.3" Capacitive Touch Screen + Physical KeysCombines a 4.3-inch HD touchscreen with physical knobs for convenient operation. Supports 128-level grayscale, color temperature, and persistence display for clear and intuitive waveform viewing.3.Built-in 10MHz Signal GeneratorGenerates 9 waveform types including sine, square, triangle, DC, noise, and step signals. Amplitude and duty cycle are adjustable, ideal for circuit simulation and testing applications.4.Integrated True RMS Multimeter4½-digit (20,000 counts) True RMS measurement. Supports AC/DC voltage and current, resistance, capacitance, temperature, diode, and continuity testing - a versatile all-in-one tool.5.Portable Design with Smart FeaturesBuilt-in 5000mAh rechargeable battery with Type-C fast charging. Includes auto power-off, screen brightness control, sound/light alarm, self-calibration, waveform screenshot saving, and USB data export.Basic ParametersProduct Name: 3-in-1 2CH 100MHz Phosphor ScopeMeterModel: 2D15PScreen: 4.3-inch capacitive touchscreenBattery: 5000mAh rechargeable lithium batteryPower Supply: Type-C input (12V / 1A fast charge)Operation Method: Touch + knob + physical buttonsDisplay: 128-level grayscale, color temperature, persistenceOscilloscopeChannels: 2 channelsAnalog Bandwidth: 100MHz (single channel) / 50MHz (dual)Sampling Rate: 500MSa/sMemory Depth: 10K / 100K / 1MInput Impedance: 1MTime Base Range: 5ns/div 50s/divVertical Sensitivity: 10mV/div 10V/divMax Input Voltage: 800V (×10 probe)Trigger Modes: Auto / Normal / SingleTrigger Type: Rising / Falling / Both EdgesCoupling: AC / DCDisplay Modes: Dot / Vector / Color TemperatureMath Operations: 11 types (Add, Subtract, Multiply, Divide, Integrate, Differentiate, Filter, etc.) + FFTMeasurement Functions: 18 auto measurements (frequency, Vpp, duty, RMS, etc.)Waveform Capture Rate: Up to 1200 frames/sPersistence: Adjustable (min/2s/5s/10s/20s/50s/)Waveform Save/Export: Screenshot save & USB exportOther Functions Cursor measurement selfcalibration, FFT analysis, waveform mathSignal GeneratorChannel: 1 channelOutput Frequency: 010MHzOutput Amplitude: 0.13.0VppDuty Cycle: 0100%Waveform Types: Sine, Square, Triangle, DC, Noise, Half-wave, Full-wave, Positive Step, Negative StepMultimeterDC Voltage: 1.9999V / 19.999V / 199.99V / 1000VAC Voltage: 1.9999V / 19.999V / 199.99V / 750VDC Current: 19.999mA / 199.99mA / 1.9999A / 9.999AAC Current: 19.999mA / 199.99mA / 1.9999A / 9.999AResistance: 1.9999K 19.999MCapacitance: 9.999nF 99.99mFDiode / Continuity: SupportedAuto Range: Auto-detects voltage/resistance and AC/DCTemperature Measurement: Supported1.2D15P Scope DMM2.P6100 Probe * 23.Multimeter Probe5.USB Data Cable4.Alligator Clip Probe6.User Guide==========Battery Included : YesHigh-concerned chemical : NoneIS Battery Demountable : YesModel Number : 2D15PCertification : Real Time Sampling Rate : 500MSa/sDIY Supplies : ElectricalBand Width : 100MHHzDigital Channels : 2Display Size : 3.0 - 4.9 InchesDSO Channel : Dual ChannelSample Rate : 500MSa/sAnalog Bandwidth : 100MHzMemory Depth : 10K, 100K, 1MInput Impedance : 1MTimebase Range : 5ns~50sVertical Sensitivity : 10mV~10V/divMax Input Voltage : 800V (x10 Probe)Trigger Mode : Auto, Normal, SingleTrigger Type : Rising, Falling, Both EdgesDisplay Mode : Dot, Vector, Color TempCoupling : AC/DCPersistence : min/2s/5s/10s/20s/50s/infinityMath Operations : 11 Basic Ops + FFTWaveform Capture : SupportedWaveform Export : SupportedCursor Measurement : SupportedDDS Channel : 1CHFrequency : 0-10 MHzAmplitude : 0.1-3.0 VppDuty cycle : 0-100%DC Voltage : 1.9999V/19.999V/199.99V/1000VAC Voltage : 1.9999V/19.999V/199.99V/750.0VDC/AC Current : 19.999mA/199.99mA/1.9999A/9.999AResistance : 19.999M/1.9999M/199.99K/19.999K/1.9999K/199.99Capacitance : 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mFDiode : SupportedContinuity : Supported
