JRready ST6547 Molex Mini-Fit Jr. Micro-Fit Crimping Tool Kit with 2Pin 4Pin 6Pin Connector Kit Pins and Sockets 20-24AWG/18-24AWG Crimp Terminals Molex Connectors 4.2mm/3.0mm Pitch with Pin Extractor
4.6 (125 items)
Limited Time SaleUS$137.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218246360 | Release Date | 2026/05/03 | List Price | US$91.60 | Model Number | 218246360 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

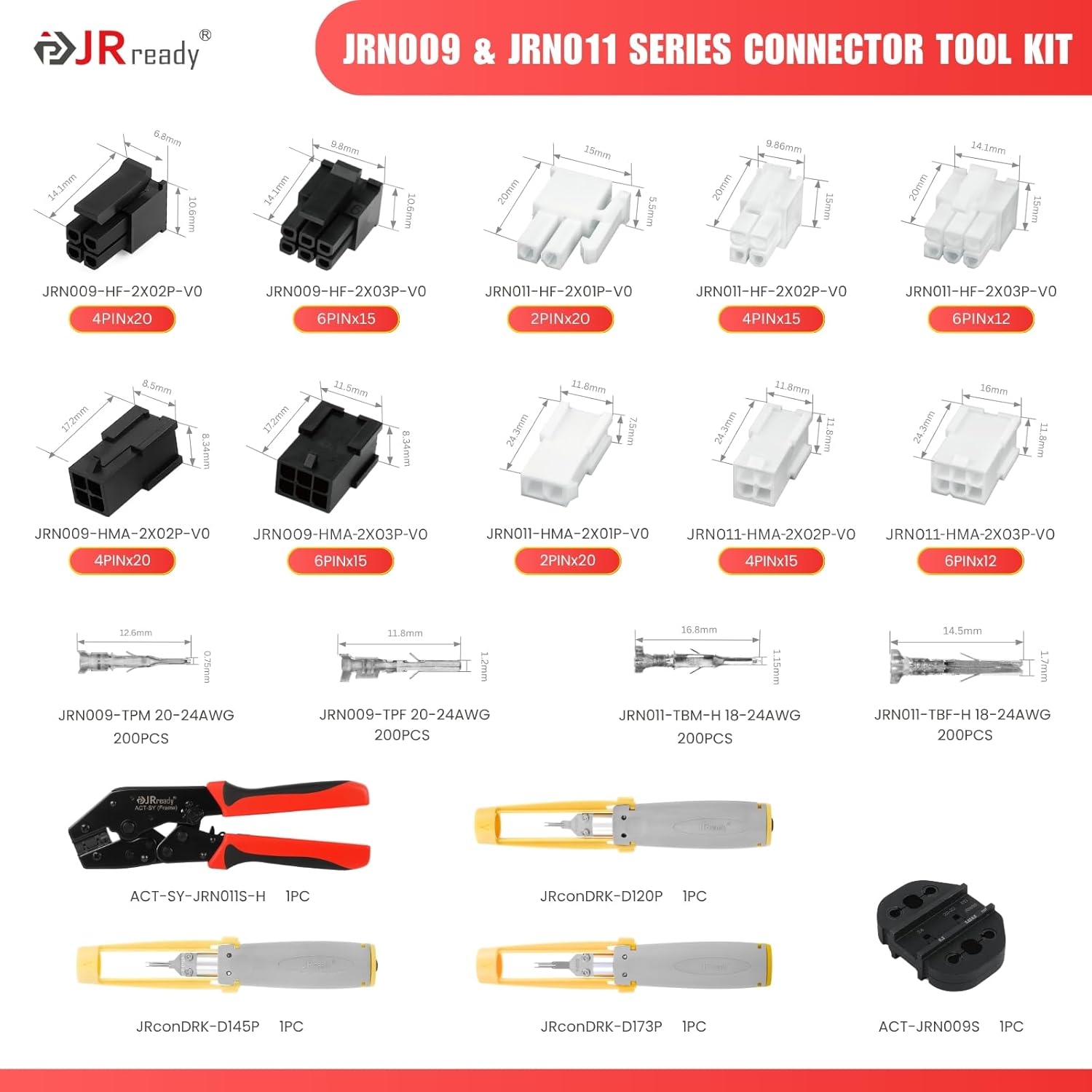

- [Precision Crimping Tool]ACT-SY-JRN011S-H for JRN011(Mini-Fit Jr.)Series terminals. ACT-JRN009S for JRN009(Micro-Fit) Series terminals. The crimping dies are carefully designed with precise geometry to perfectly shape the conductor and insulation wings. The result is a professional B-shaped crimp that ensures maximum mechanical strength and optimal conductivity to meet OEM standards.
- [Pin Removal Tool]The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness. JRconDRK-D145P is suitable for Micro-Fit male pins. JRconDRK-D120P is suitable for Micro-Fit female pins.JRconDRK-D173P is suitable for Mini-Fit Jr. male&female pins.

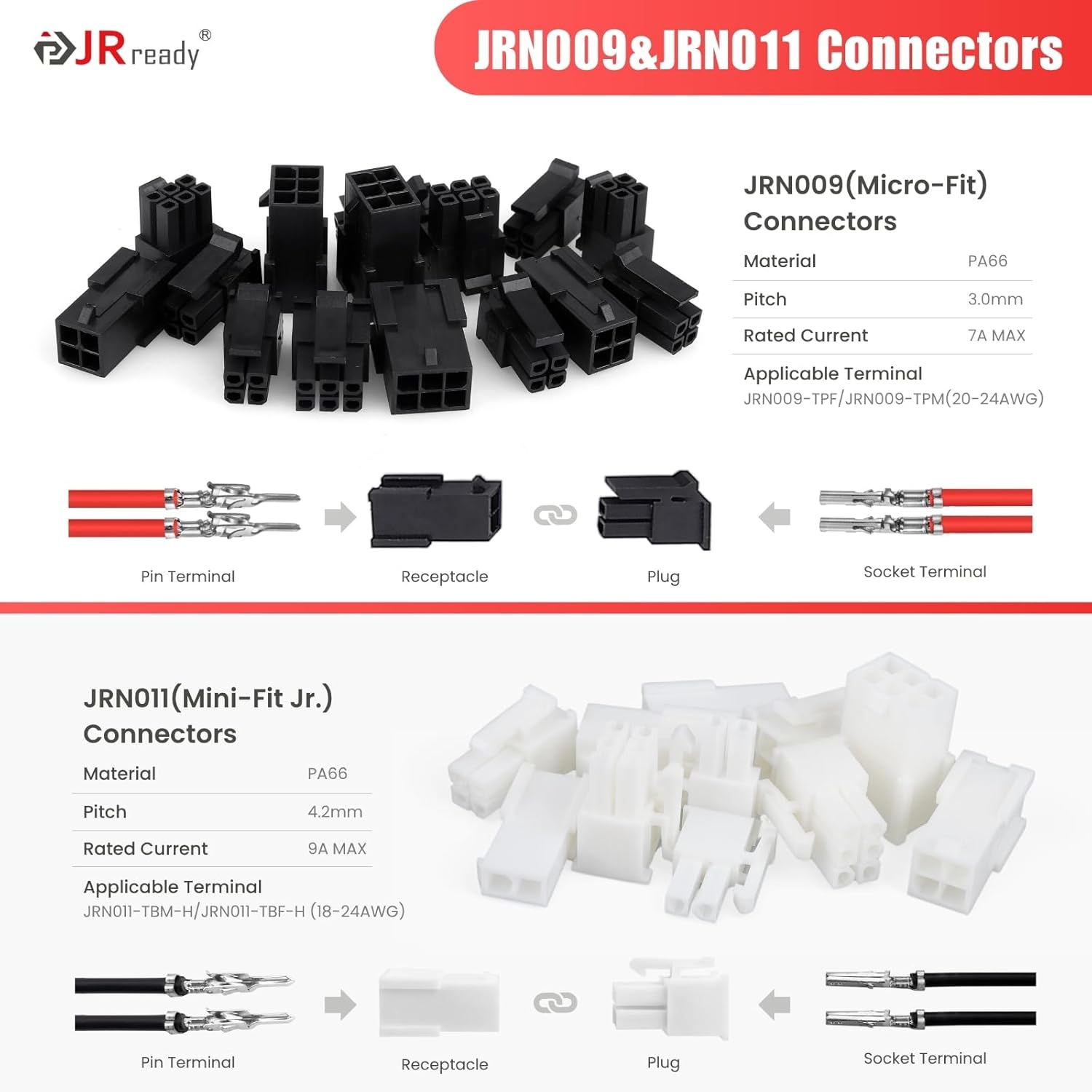

- [High Quality Connectors]The connectors is made of PA66, Flame retardant grade is UL94-V0. The operating temperature range is from -40℃ to +105℃. Under environmental conditions of 23℃ ± 5℃,can be mated and unmated over 50 times. JRN009 SERIES CONNECTOR(3.0mm pitch) rated current is 7A MAX. JRN011 SERIES (4.2mm pitch) CONNECTOR rated current is 9A MAX.
- [Contact design]JRN009-TPF/JRN009-TPM (20-24AWG) is made of tin-plated phosphor bronze. JRN011-TBM-H/JRN011-TBF-H (18-24AWG) is made of tin-plated brass. High-quality copper alloy and plating provide reliable electrical connection and higher current carrying capacity. The locking handle on the crimping contact securely fixes it in the connector housing. The kit contains a large number of terminals that can be used for crimping contact practice or as spare terminals, providing a good user experience for beginners.
- [Master Your Projects]Your go-to kit for custom PC cables, 3D printer upgrades, robotics, and automotive DIY. Elevate your builds from homemade to professional-grade with the right tools for a reliable, clean, and serviceable finish every time.
| Color | Micro-fit &Mini-fit Jr Series Electrical Connector |
|---|---|
| Set Name | 2Pin 4Pin 6Pin |
| Grip Type | Standard |
| Brand Name | JRready |
| Handle Type | Fixed |
| Manufacturer | JRready |
| Model Number | ST6547 |
| Handle Material | Metal |
| Specification Met | UL |
| Manufacturer Part Number | ST6547 |
| Specific Uses For Product | custom PC cables, 3D printer upgrades, robotics, automotive DIY projects |
