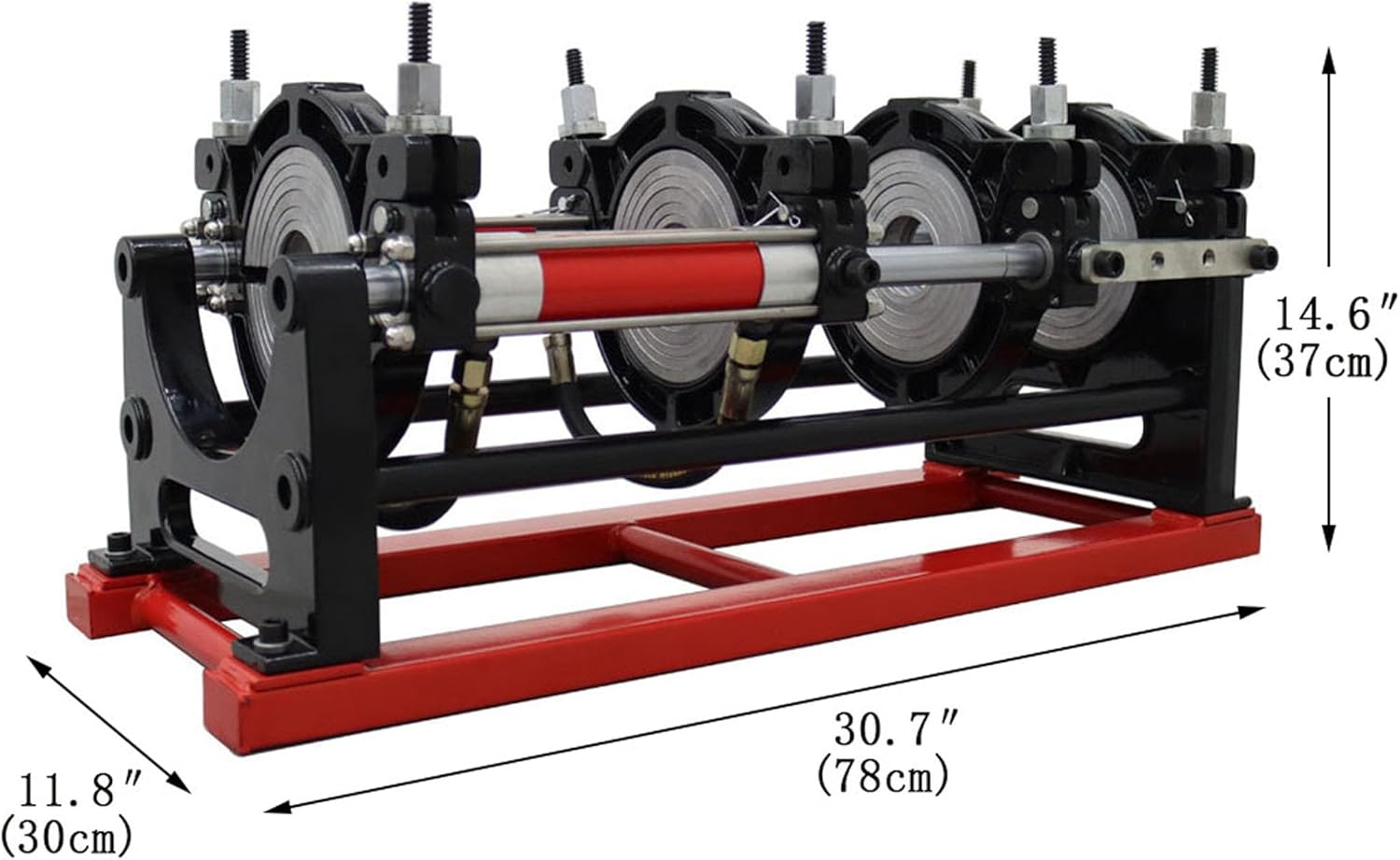

Pipe Fusion Welder 4 Clamps Welding Machine for PP PE PB PVDF Butt Pipe Hydraulic Hand Crank Pipe Welder 2.48"-6.30" (63-160mm) 110V 1KW

Description：Multifunctional hydraulic butt welding machine, suitable for a variety of hot melt pipe fittings, PE PB PPR, etc. Simple operation, solid welding, intelligent, digital temperature control. Combined operation, perfect function, simple time saving and labor saving.Specifications:Model No.: 2.48"-6.30" (63-160mm) 4 ringsMaterials: Aluminum alloy casting, 45# steelWelding level(Φ, mm)outer dia: 2.48" (63mm), 2.95" (75mm), 3.54" (90), 4.33" (110mm), 1.92" (125mm), 5.51" (140mm), 6.30" (160mm)Docking deviation: ≤0.3mmVoltage: 110VPower of Heater: 1KWPower of Milling Cutter: 0.85KWPower of Hydraulic Station: 0.75KWPressure adjustable range: 0-6MpaWorking temperature: 0-300°cTemperature deviation: ±5°cEnvironment temperature: -5-40°cTime required to reach soldering temperature: 20minMaterials can be welded: PE PPR PB PVDFFeature:1、Multifunctional hydraulic control system,timing temperature control, random adjustment, digital clear, clear at a glance, multifunctional operation, save time and effort.2、Hydraulic cylinder control, with quick joint, simple operation, save time and effort.3、Industrial aviation plug, transmission is more stable, more durable.4、Carbon steel bolts are more tightly connected.5、The adjustable widening and thickening clamp makes the pipe more firmly fixed and prevents the pipe from shifting during welding pressure.6、Wider and thicker frame, better bearing capacity, more stable.7、With high-power motor, the cutting is more smooth and the welding is more convenient.8、The support of the heating plate and milling cutter can be placed after use to prevent scalding.

• 【Parameter】Model No.: 2.48"-6.30" (63-160mm) Four clamps, Welding Level(Φ, mm)Outer Dia: 2.48" (63mm), 2.95" (75mm), 3.54" (90mm), 4.33" (110mm), 4.92" (125mm), 5.51" (140mm), 6.30" (160mm), Docking deviation: ≤0.3mm, Voltage: 110V, Power of Heater: 1KW, Power of Milling Cutter: 0.85 KW, Power of Hydraulic Station: 0.75KW, Pressure adjustable range: 0-6Mpa, Temperature deviation: ±5°c, Environment temperature: -5℃-40℃, Time required to reach soldering temperature: 20min.
• 【Premium Material】The body of pipe welder is made of high-quality aluminum casting, which can reduce the weight without affecting the strength and performance, plus wider and thicker clamps, longer and thicker frames, which can make the body weighing better and more stable.

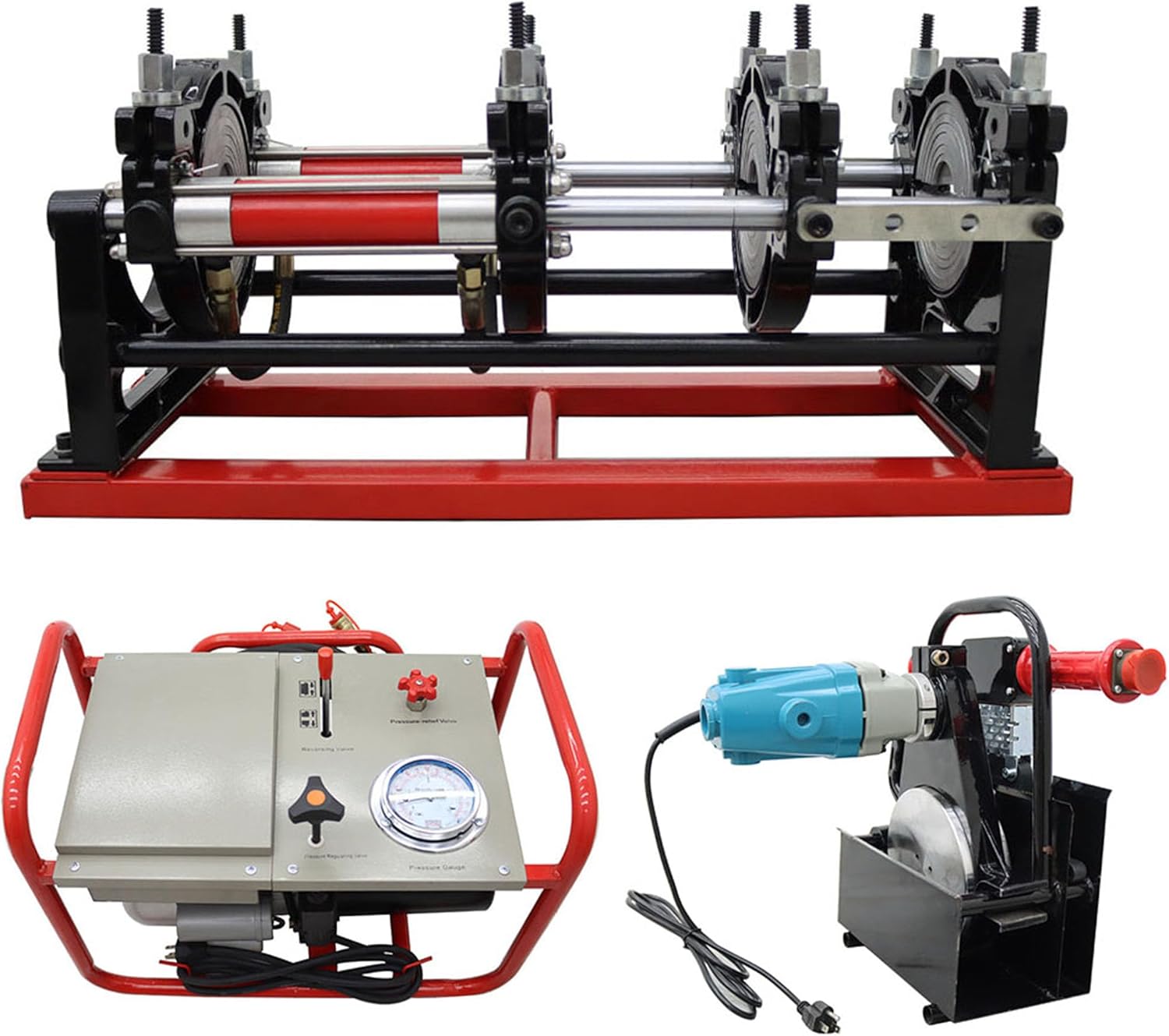

• 【Excellent Design】The pipe fusion welder with automatic pressure maintaining device, welding is more convenient without holding hands. Screw hand wheel, automatically pressure-holding, the screw will not go back,easy to adjust the distance between clamps. Milling cutter adopts high power motor, cutting more smoothly. Thickened anti sticking heating plate, durable.
• 【Thermostatic System】The 0-300° manual temperature control panel is clear, at a glance, turn to adjust more convenient, according to different materials to set the temperature, , long-lasting constant temperature, saving heating time.
• 【Application】WYDDDARY's Pipe Fusion Welder is suitable for PE PB PPR PVDF pipes and fittings, with their superb design and construction, can be an excellent equipment for construction sites and factories.
